Design Features

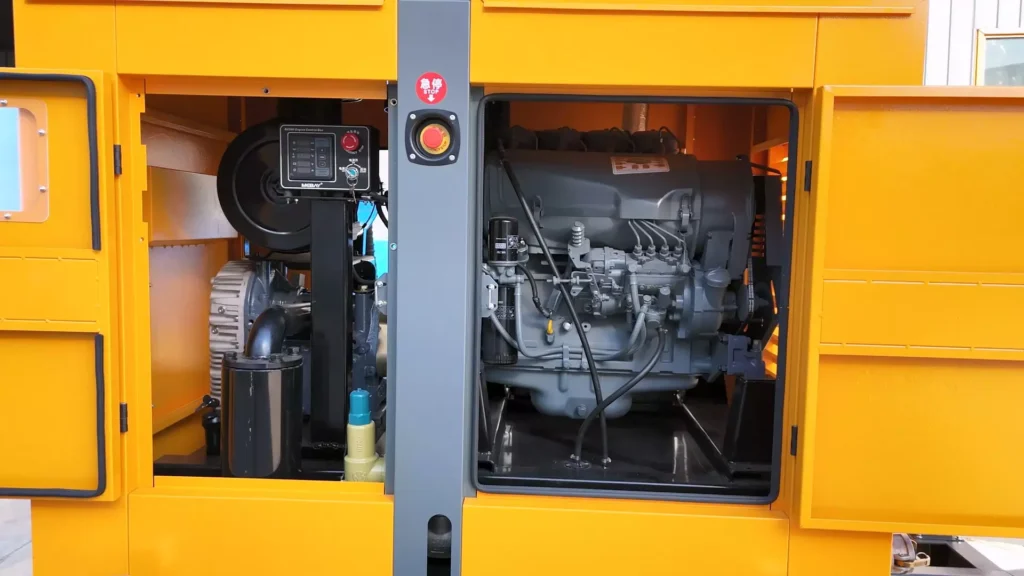

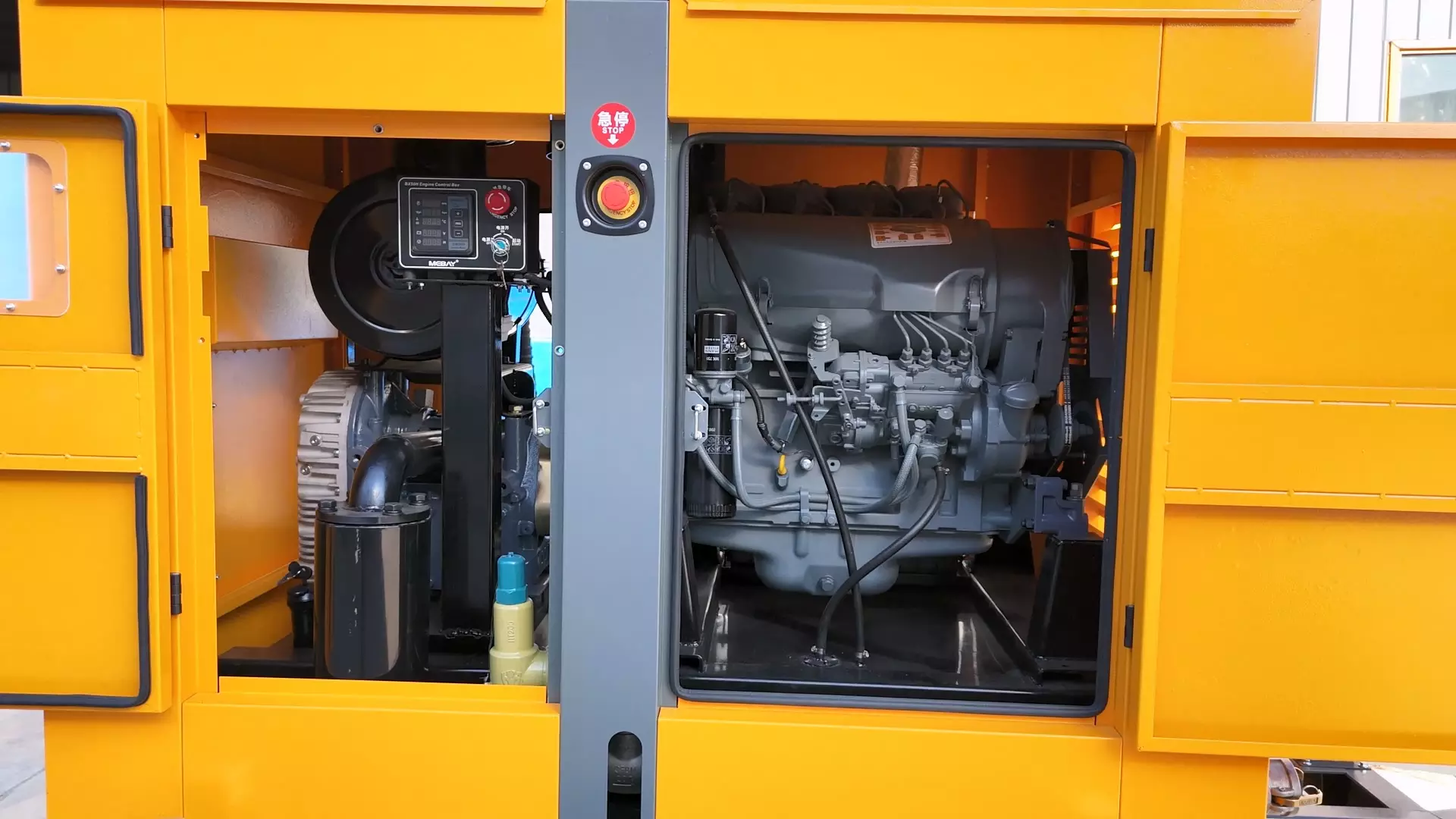

Diesel-Driven System: No external power supply required, offering strong mobility, high operational flexibility, and reliable continuous performance for mobile applications.

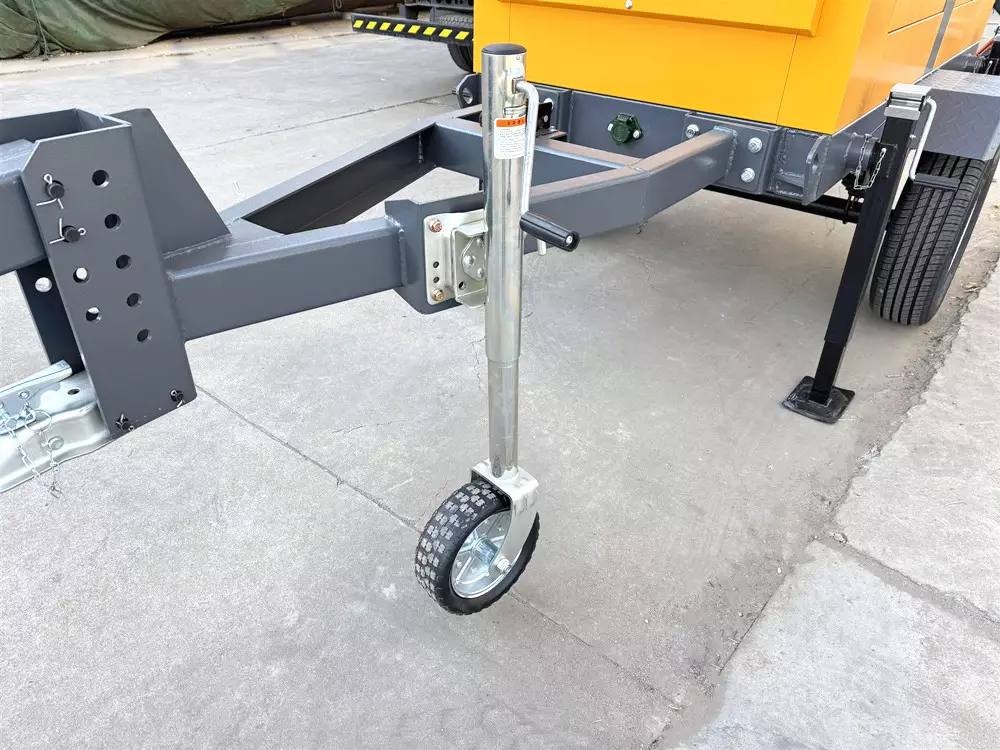

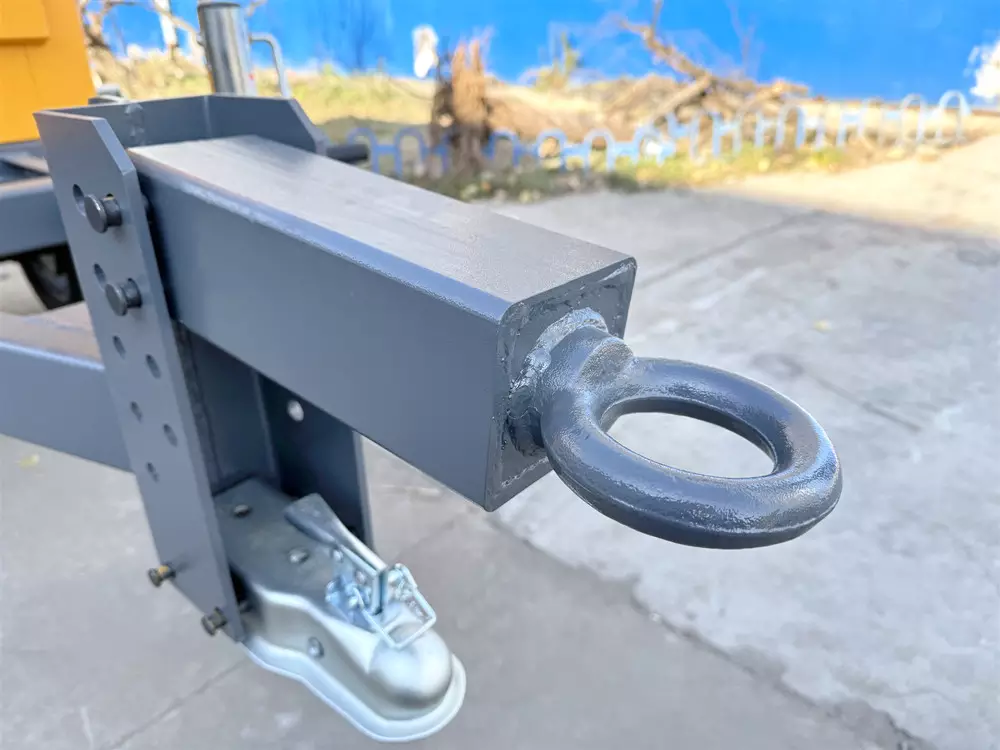

Mobile Trailer Structure: Built with a high-strength anti-vibration chassis for ready-to-tow operation and easy transportation across different job sites.

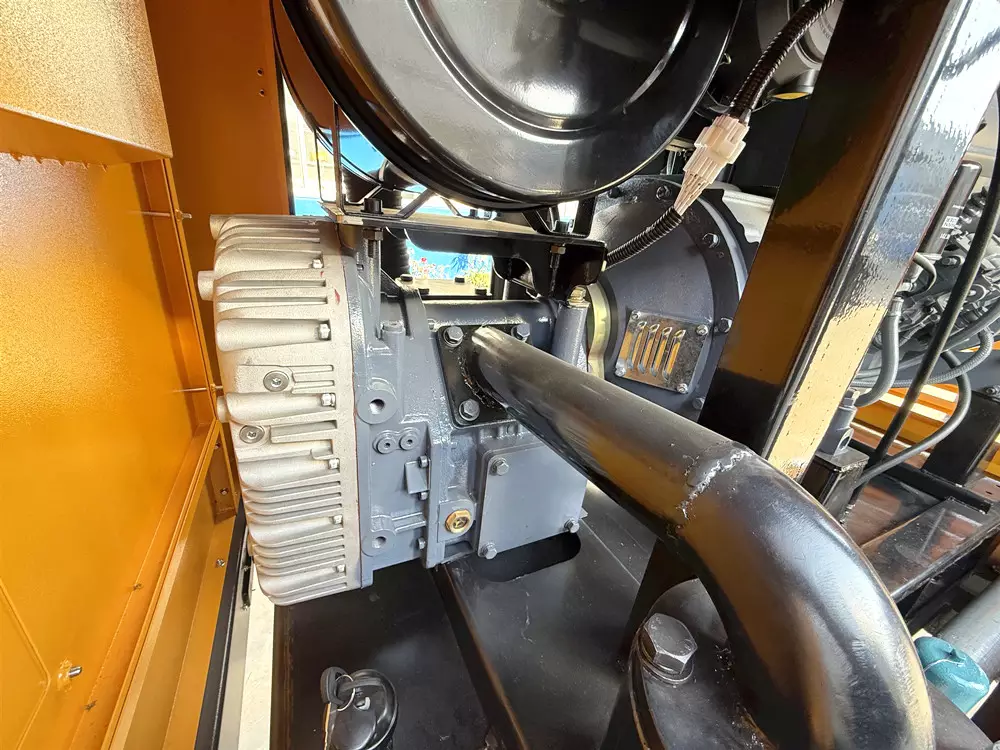

PTFE Nano Coating: Rotor surfaces are coated with aerospace-grade PTFE for excellent wear and heat resistance, extending service life by up to 30%.
FAG Bearings: Equipped with premium German FAG bearings, supporting 24/7 continuous heavy-duty operation.
Parameters
| Model | DEBOS Diesel Portable Air Compressor |
| Driven Method | Diesel Driven |
| Airflow | 12m³/min; 450cfm |
| Pressure | 2.0bar |
| Input Speed | 1500rpm |
| Exhaust Temperature | 180-220℃ |
| Dimensions | 1583+1844mm x 1780mm x 2315mm |
| Tare Weight | 1,350kg(±5%) |
| Engine Model | Deutz Technoloy Diesel Engine |
| Engine Continuous Power | 41kw |
| Engine Max Power | 45kw |
| Engine Rotation | Clockwise (as clock hands) |
| Engine Displacement (L) | 3.77 |
| Engine Bore x Stroke (mm) | 100 × 120 |
